Modelo: HWX10000A
Marca: PEDIDO OEM ACEPTABLE
Origin: PORCELANA
Fuente De Alimentación: Hidráulico
Solicitud: AUTO
Paquete: CAJA DE EXPORTACIÓN O CAJA DE MADERA
transporte: Ocean,Air
Lugar de origen: PORCELANA
Hafen: NINGBO,SHANGHAI
Tipo de Pago: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Nuestros cabrestantes hidráulicos le brindan una solución de servicio continuo para sus requisitos de cabrestante. Diseñados con los estándares comerciales más pensados.
Teniendo en cuenta la aplicación, todos los cabrestantes ofrecen total confiabilidad para tirones sostenidos manualmente.

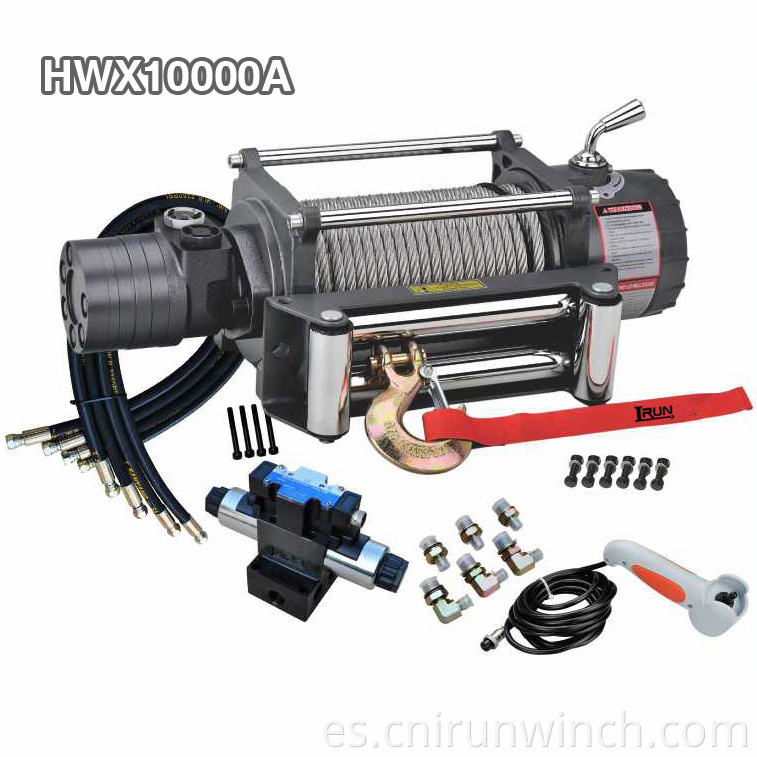

Artículo No.HWX10000A - Cabrestante hidráulico de 10000 lbs
Características:
HWX10000A
| SPECIFICATION | |
| Rated line pull | 10000 lbs (4536kgs) |
| Motor: permanent magnet | 65ml/r |
| Oil Flow | 5~45L/min |
| Pressure | 10Mpax |
| Gear reduction ratio | 28:1 |
| Cable (Dia.× L) | Ø3/8 “×85.3 ‘ (Ø9.2mm×26m) |
| Drum size (Dia.× L) | Ø2.48″×8. 8″ (Ø63mm×223mm) |
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3mm) 4-M12 |
| Line pull lbs (kgs) | Pressure
Mpa(Psi) |
Flow
G/min (L/min) |
Line speed ft/min(m/min) |
| 0 | 2.0(290.1) | 1.3(5) | 2.0 (0.6) |
| 4000(1814) | 3.8(551.1) | 2.6(10) | 3.6(1.1) |
| 6000(2722) | 7.2(1044.2) | 5.3(20) | 7.5(2.3) |
| 8000(3629) | 8.6(1247.3) | 9.2(35) | 13.1(4.0) |
| 10000(4536) | 10.0(1450.3) | 11.9(45) | 17.4(5.3) |
| Layer of cable | Rated line pull
lbs(kgs) |
Total rope on drum
ft (m) |
|
| 1 | 10000(4536) | 17.4(5.3) | |
| 2 | 7969(3615) | 39.4(12.0) | |
| 3 | 6624(3005) | 65.0(19.8) | |
| 4 | 5667(2571) | 85.3(26.0) |
| ITEM | HWX10000A | HWX10000U | |
| Overall dimensions | 21.7″×6.9″×8.5″ | 21.7″×6.9″×10.6″ | |
| (L×W×H) | 550mm×174mm×217mm | 550mm×174mm×270mm | |
| Net weight (Ibs) | 91.0 | 91.0 | |
| (kgs) | 41.3 | 41.1 |
Dimensiones totales 21,6″ x 6,3″ x 10,6″
(Largo x ancho x alto) 550 mm x 160 mm x 217 mm
Peso neto 41,1 kg
