Modelo: EWD10000
Marca: PEDIDO OEM ACEPTABLE
Origin: PORCELANA
Fuente De Alimentación: Eléctrico
Solicitud: ATV / UTV
Voltaje: 24 V, 12V
Paquete: CARTÓN DE EXPORTACIÓN
transporte: Ocean,Air
Lugar de origen: PORCELANA
Hafen: NINGBO,SHANGHAI
Tipo de Pago: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF

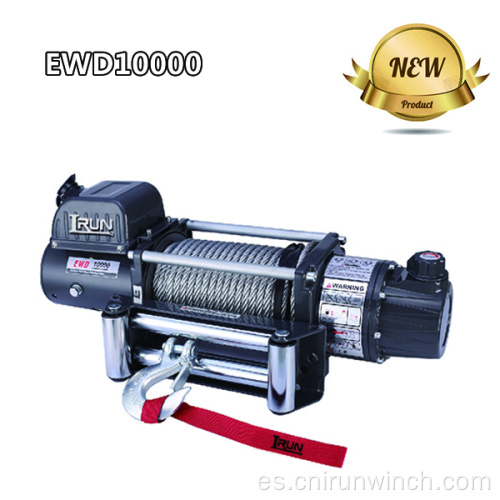

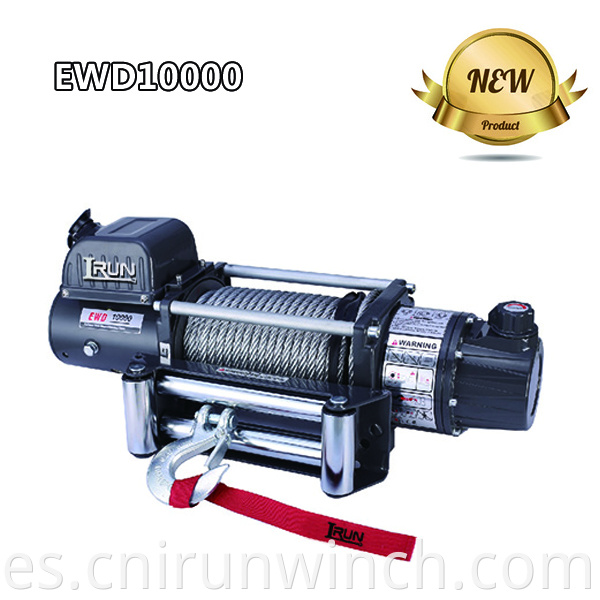

Cabrestante eléctrico 4×4 de dos velocidades de 10000 libras con embrague patentado Artículo n.º EWD10000
SERIE EWD La serie de cabrestantes son cabrestantes eléctricos perfectos de dos velocidades con máx. Fuerza de tracción de 5500 libras a alta velocidad. El control de cambio de velocidad y embrague se puede activar simultáneamente para ofrecer más comodidad al usuario.
Características:
10.000 libras esterlinas
| Specification: | ||||
| Rated line pull | 10000 lbs (4536 kg) | |||
| Motor: Series wound | 12V:Input: 4.3kW / 5.7hp | |||
| Output: 2.1kW / 2.8hp | ||||
| 24V:Input: 4.1kW / 5.5hp | ||||
| Output: 2.8kW / 3.8hp | ||||
| Gear reduction ratio | 267:1 (Low speed); 86:1 (High speed) | |||
| Cable (Dia.× L) | Ø3/8 “×85 ‘ (Ø9.2mm×26m) | |||
| Drum size (Dia.× L) | Ø2.48 “×8.8 ” (Ø63mm×223 mm) | |||
| Mounting bolt pattern | 10 “×4.5 ” (254mm×114.3 mm) 4-M10 | |||
| Low Speed | High Speed | ||||||||
| Line Pull Lbs.(kg) | Line Speed ft/min(m/min) | Current
A |
Line Pull Lbs.(kg) | Line Speed ft/min(m/min) | Current
A |
||||
| 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | 12DC | 24DC | ||
| 0 | 28.9(8.8) | 19.7(9.2) | 70 | 50 | 0 | 78.7(24.0) | 82(25.0) | 75 | 60 |
| 6000(2722) | 8.6(2.7) | 9.2(2.8) | 230 | 100 | 3000(1391) | 20.3(6.2) | 22.3(6.8) | 300 | 135 |
| 8000(3629) | 7.9(2.0) | 7.9(2.4) | 280 | 130 | 4000(1814) | 16.4(5.0) | 19.0(5.8) | 365 | 170 |
| 10000(4536) | 4.9(1.5) | 6.6(2.0) | 360 | 170 | 4500(2041) | 13.1(4.0) | 17.1(5.2) | 400 | 210 |
| Line pull and rope capacity in layer | ||
| Layer of cable | Rated line pull Lbs. (kg) | Total rope on drum ft (m) |
| 1 | 10000(4536) | 17.4(5.3) |
| 2 | 7969(3615) | 39.4(12.0) |
| 3 | 6624(3005) | 65.0(19.8) |
| 4 | 5667(2571) | 85.3(26.0) |

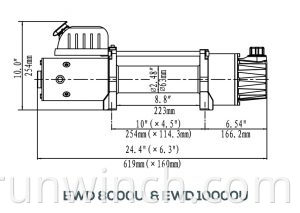

| ITEM | EWD 10000U | EWD 10000S | EWD 10000F |
| Overall dimensions | 24.4″×6.3″×10.0″ | 24.4″×6.3″×11.1″ | 24.4″×6.5″×9.9″ |
| (L×W×H) | 619mm×160mm×254mm | 619mm×160mm×283mm | 619mm×166mm×251mm |
| Net weight (Ibs/kg) | 86.0lbs / 39.0kg | 88.2lbs / 40kg | 92.6lbs / 42kg |
PRODUCTOS POR GRUPO : Cabrestantes eléctricos > Cabrestante eléctrico de 2 velocidades
